LED Downlight

  • led down lights manufacturers
  • led down lights manufacturers
  • led down lights supplier

LUX-SP03D Robus Downlight

The LED downlight LUX series with COB Bridgelux LED chip, external driver. Luminarie color can be black, white and silver for optional. One heat sink can do three Downlight, easily to change the frame. Fixed Downlight and adjustable Downlight for optional.

  Features:

  • Single color temperature and 3CCT for your choose

  • Flicker free driver, PF>0.9

  • 36°,60° beam angle for fixed downlight

  • 15°, 24°, 38° and 60 ° beam angle for adjustable downlight

  • Triac Dimmable,1-10v dimmable, DALI dimmable driver available on request

  • Overview
ModelLUX-SP03-C10W
Dimension(mm)Ø102*58
Cutout(mm)Ø85-95
Watt(W)10W
Input Voltage(V)AC220-240V
Light SourceCOB
CCT(K)3000K/4000K/5000K
LuminousFlux(lm)±5%815lm
CRIRa>80
Beam Angle(°)15°、24°、38°、60°
LED ChipEpistar
LED DriverLifud
Finishing ColorWhite/Black
MaterialAluminum
Lifetime(hr)30,000h
OperatingTemp.(℃)-20℃~40℃
StorageTemp.(℃)-20℃~65℃
InstallationRecessed


LED Downlight Manufacturer

OBALS Lighting factory is a professional LED downlight manufacturer and LED downlight supplier, we focusing in high quality Commercial Lighting, Residential Lighting production and LED downlight OEM/ODM service. Professional fixtures are downlight supplier, LED Track light, Pendant Light, Linear Lighting.



Application Scenarios

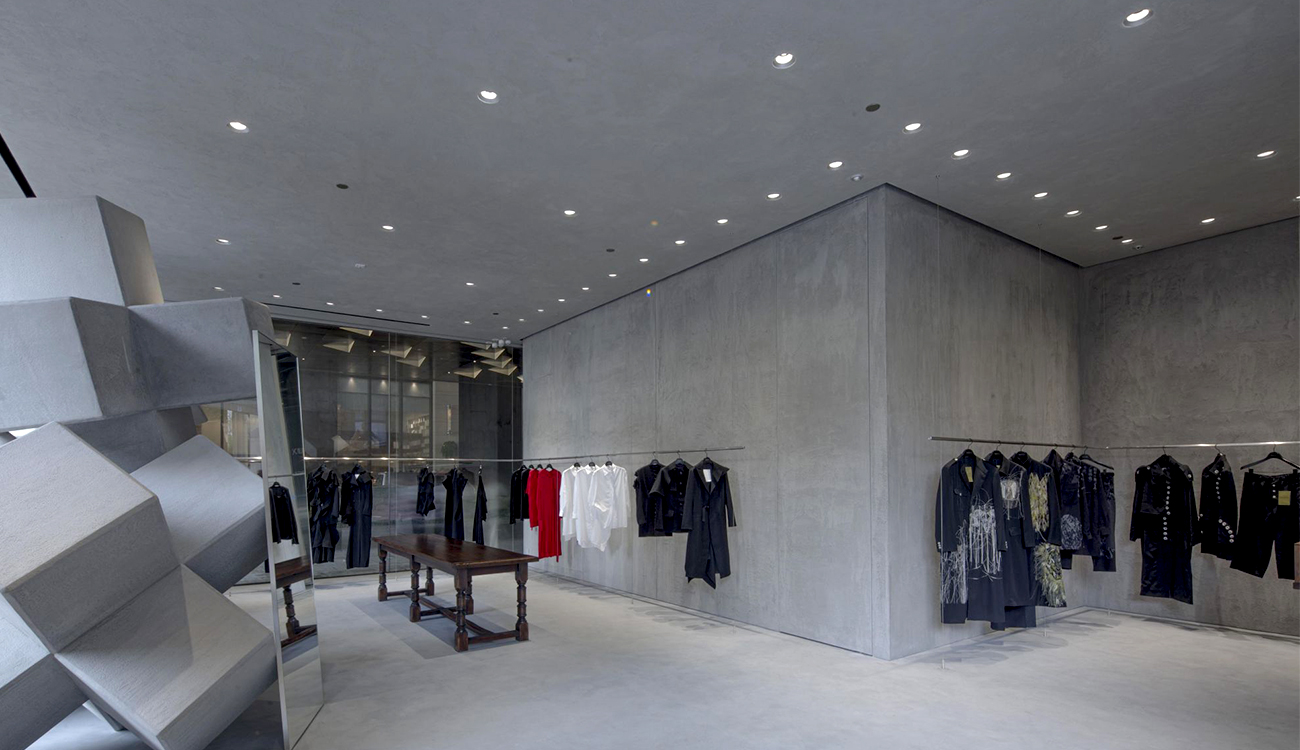

Widely used in hotels, restaurants, shops, offices, supermarkets, living roomkitchen and residental lighting etc.




Contact our Customer service department about product personalization options.
