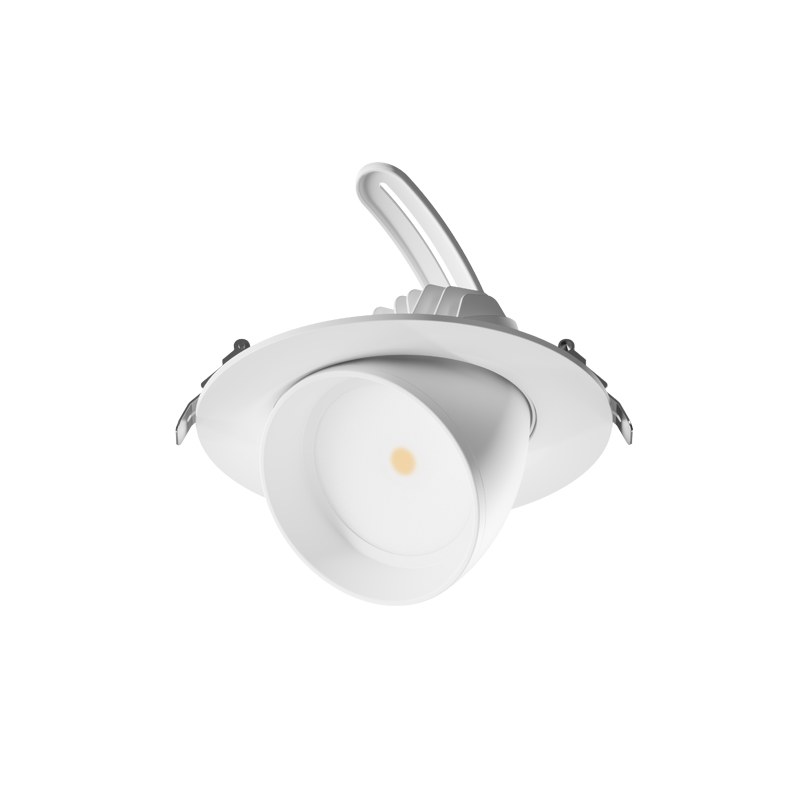

RS-006-CD Mini Spotlight

The LED spotlight RS-006 series with two built-in switch for changing wattage and color temperature, the spotlight shows its cost-effective on saving inventory. Die-casting aluminum shell design makes it with an excellent heat dissipation performance. The design of 60°vertically and 350°horizontally adjustable for different lighting direction. The high efficiency of  this spotlight can reach 120lm/w and CRI is greater than 80 for making everything look more real.

  Features:

  • 1-CCT and 3-CCT optional

  • Sing wattage and dual wattage optional

  • Optics: glass/lens(UGR<19)

  • High efficiency SMD & COB LED chip, CRI≥80

  • 60° vertically adjustable and 350°rotatable

  • Dimmable Spotlights IP65 spotlights surface mounted spotlights bathroom led spotlights


Specification

Model

RS-006-CD20W

RS-006-CD28W

RS-006-CD38W

Power(W± 5%)

20W

28W

38W

Input Voltage

AC220-240V50/60Hz

LED Current(mA)

500mA

700mA

950mA

LED Chip

Bridgelux

Drive

LIFUD

CCT

1 CCT: 3000K/ 4000K /5000K

3 CCT:2700K & 4000K & 6000K

Beam Angle

15°/24°/36°/60°

CRI

Ra≥80

Adjustable Angle

50° Vertical Rotation+350° Horizontal Rotation

Life Span

30000 hour

Finishing Color

White/ Black

Dimensions(mm)

Ø195×135mm

Cut-out(mm)

Ø165 mm


Description

LED Spotlight Manufacturer

OBALS Lighting factory is a professional LED spotlight manufacturer and LED spotlight supplier, we focusing in high quality Commercial Lighting, Residential Lighting production and LED spotlight OEM/ODM service. Professional fixtures are downlight supplier, LED Track light, Pendant Light, Linear Lighting.

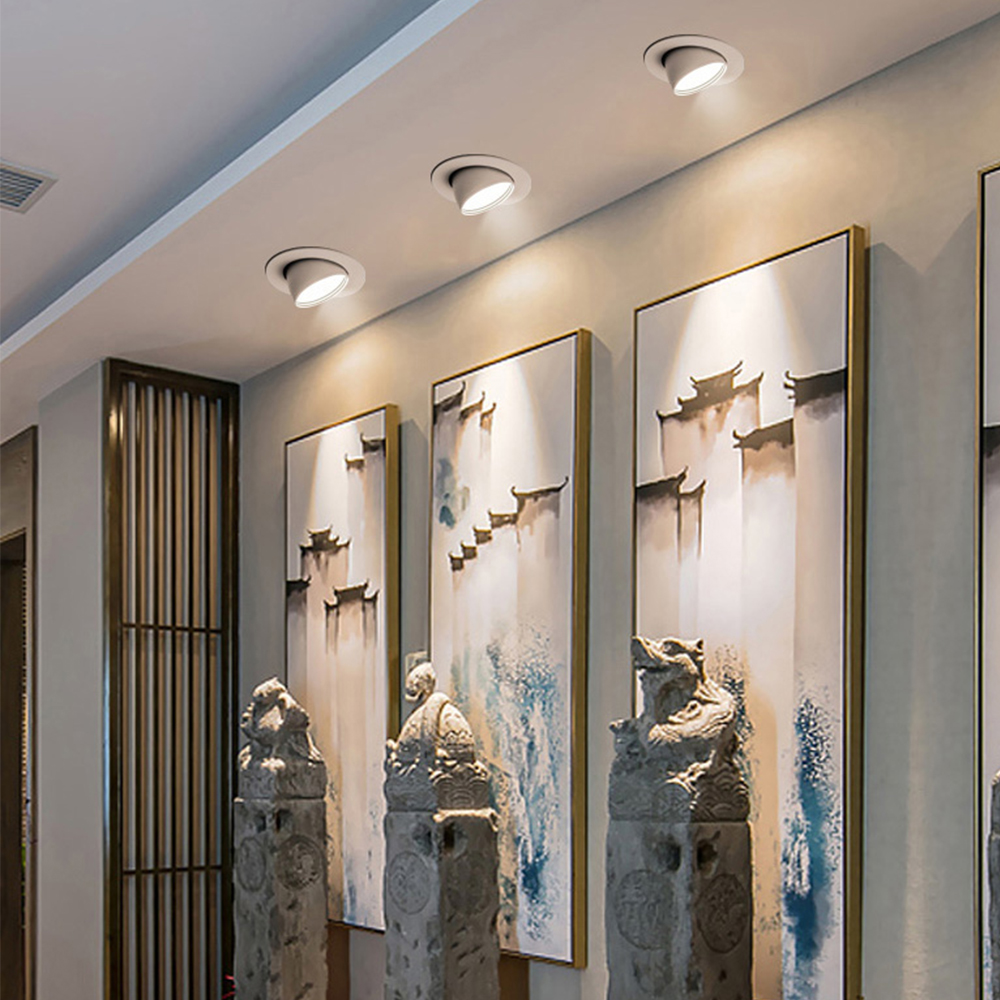

Application Scenarios

Widely used in hotels, restaurants, shops, offices, supermarkets, living roomskitchens and residental lighting etc.
