LUX-DD LED Grill Light 30W

The LED grill light LUX series with high-performance heat sink, lens with reflector make the light uniform, 15°/24°/38°/60° beam angle for your options. Single head, double heads and triple heads provide more choices for you. High CRI brings excellent lighting effect, adjustable direction offers various lighting orientation.

  Features:

  • Durable die-casting aluminum body

  • A variety of specifications for you to choose:10W/20W/30W

  • Beam angle: 15°/ 24°/ 38°/ 60° optional

  • Flicker free driver, PF>0.9, Triac Dimmable,1-10v dimmable, DALI dimmable driver available on request

  • Overview
Model
LUXDD1010-C10WLUX-DD1810-C20WLUX-DD2810-C30W
Power(W)
10W20W30W

LED Current(mA)

250mA

500mA

750mA

LED Chip

Bridgelux

CCT

3000K / 4000K / 5700K

Beam Angle

15°/ 24°/ 38°/ 60°

CRI

Ra≥80

Life Span

30000 Hours

Dimensions(mm)

105×105×80mm

185×105×80mm

277×105×80mm

Cut-out(mm)

95×95mm

175×95mm

265×95mm

IP Grade

IP54


LED Grill Light Manufacturer

OBALS Lighting factory is a professional LED grill light manufacturer and LED grill light supplier, we focusing in high quality Commercial Lighting, Residential Lighting production and LED grill light OEM/ODM service. Professional fixtures are downlight supplier, LED Track light, Pendant Light, Linear Lighting.

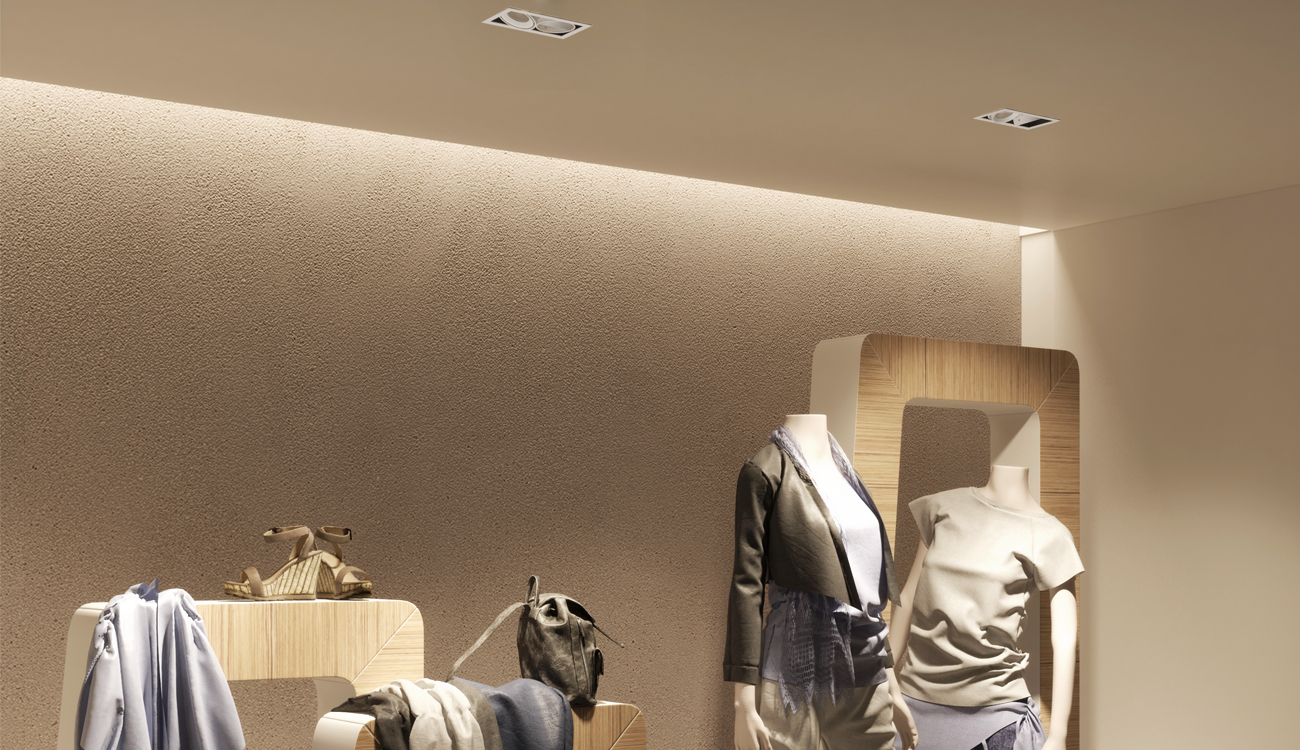

Application Scenarios

Widely used in hotels, restaurants, shops, offices, supermarkets, living roomskitchens and residental lighting etc.


Contact our Customer service department about product personalization options.
