Product-Obals

RS-001-C&D Round Spotlight

The LED spotlight RS-001 series the special advantage of round adjustable spotlight , which is 60° vertical rotation and 350° horizontal rotation. Die-casting aluminum shell design makes it with an excellent heat dissipation performance. The high efficiency of this spotlight can reach 110lm/w and CRI is greater than 80 for making everything look more real.

  Features:

  • 60° vertical rotation+350° horizontal rotation

  • High efficiency SMD & COB LED chip, CRI≥80

  • Optics: glass/lens for optional

  • Beam angle: 16°/24°/35°/48°/60°

  • Constant current flicker free driver fitted, PF>0.9

  • Die-casting aluminum shell, with excellent heat dissipation performance

  • 12V Spotlight ceiling spotlight fittings directional spot lights spot dimmable led coloured spotlights blue spot light

Specification

Model

RS-001-20W

RS-001-28W

RS-001-38W


SMD

COB

SMD

COB

SMD

COB

Power(W)

20±10%

28±10%

38±10%

Input Voltage

AC220-240V 50/60Hz

LED Current(mA)

500mA

700mA

950mA

LED Chip

SMD-SAMAUNG / SEOUL | COB-SAMSUNG / PHILIPS


CCT

2700K-6500K

Beam Angle

SMD-60° | C&D-16°/24°/48° | COB-35°/60°

CRI

Ra≥80

Adjustable Angle

60° vertical rotation+350° horizontal Rotation

Dimensions(mm)

Ø195×138mm

Cut-out(mm)Ø170mm


Description

LED Spotlight Manufacturer

OBALS Lighting factory is a professional LED spotlight manufacturer and LED spotlight supplier, we focusing in high quality Commercial Lighting, Residential Lighting production and LED spotlight OEM/ODM service. Professional fixtures are downlight supplier, LED Track light, Pendant Light, Linear Lighting.



Application Scenarios

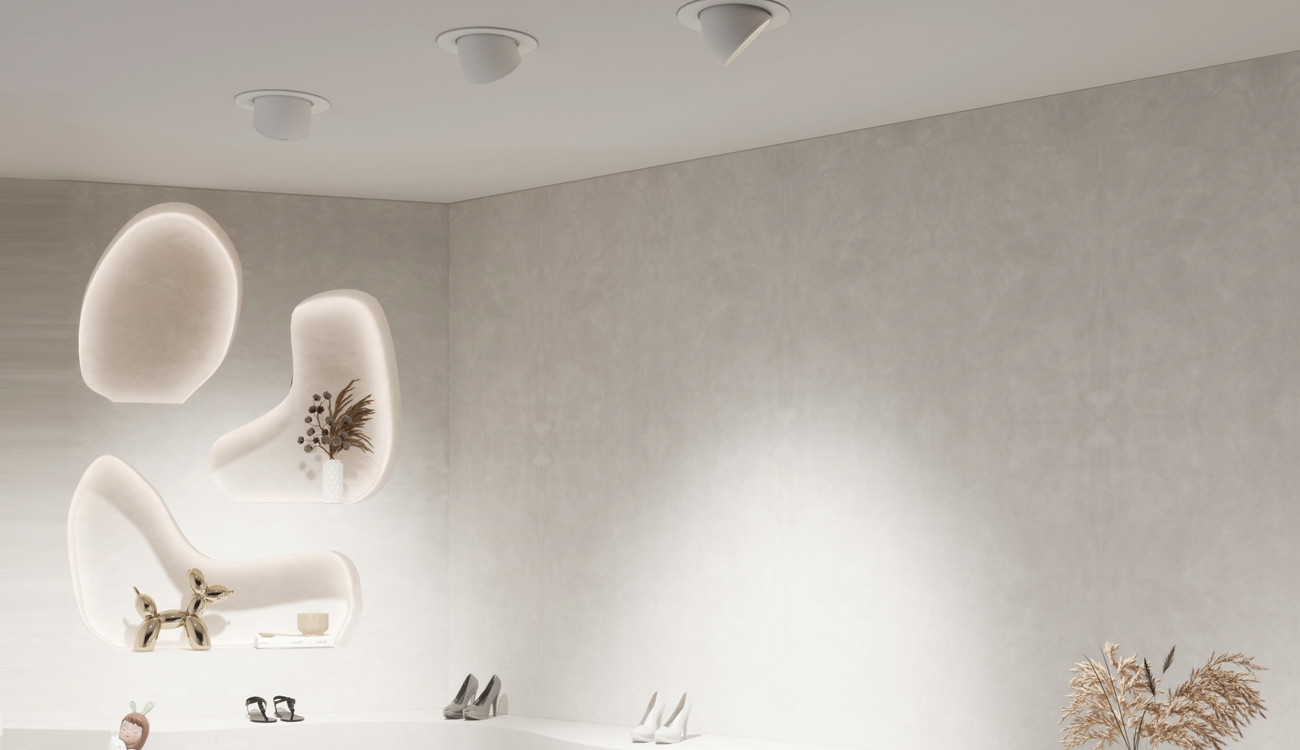

Widely used in hotels, restaurants, shops, offices, supermarkets, living roomskitchens and residental lighting etc.
