LED Track Light MINI-New

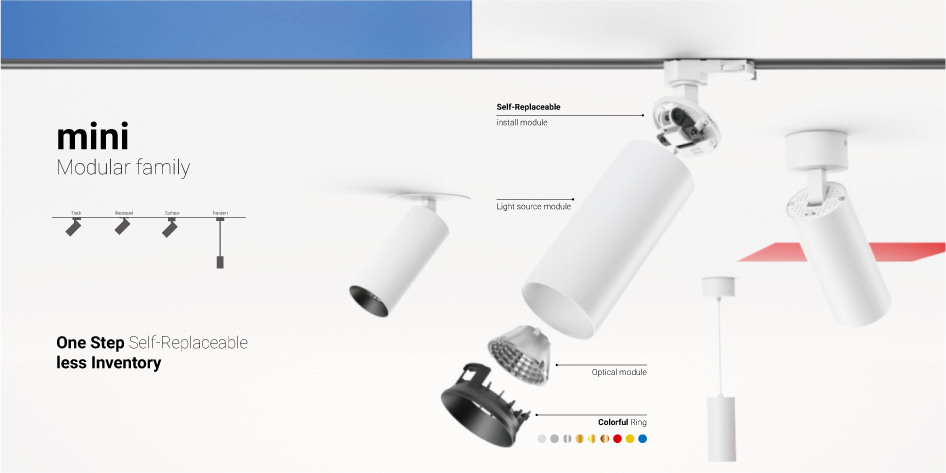

MINI This is a product that has been developed through several generations of iteration.The design objectiveis to achieve higher luminous efficiency in a smaller size, suitable for more use cases and to alleviate pressureonenergy and inventory.The upgraded MINl comes in three different sizes and has four installation methodsto meet the needs of regular use.It also features five beam angles, replaceable front rings that come in avariety of colors, quick-detach front rings, and interchangeable mounting accessories. With its excellentheat dissipation structure and high display index, the product is suitable for a wide range of use cases, fromhome use to hotels.

Download

Specification

ModelMN-DL55C-C9WMN-DL63C-C18WMN-DL75C-C30W
Power( ± 10%)9W18W30W
In putvoltage |Non dimmableAC220-240V 50/60HzAC220-240V 50/60HzAC220-240V 50/60Hz
LED Current200 mA400 mA700 mA
Led chipBridgelux
DriveLFD
CCT2700K & 4000K & 6000K2700K & 4000K & 6000K2700K & 4000K & 6000K
Luminousflux(lm±5%)2700K62013201880
4000K70014501990
6000K70013401930
Efficiency(lm/w±5%)2700K726868
4000K848076
6000K806870
Beam angle(±5%)15° / 24° / 38°/ 45° / 60°15° / 24° / 38°/ 45° / 60°15° / 24° / 38°/ 45° / 60°
CRI≥90
Adjustable angle90° vertically adjustable + 350° horizontally rotateable
Operating ambient temperature- 20～ +40℃
Operating environment humidity10-80%10-80%10-80%
Life span30000 Hours
Colorwhite / blackwhite / blackwhite / black
DimensionsØ110*160 mmØ110*214 mmØ110*194 mm
CertificationCE
IP gradeIP20
N.W/Box0.39 KG0.52 KG0.66 KG
G.W/Box0.43 KG0.56 KG0.71 KG
G.W/Carton9.75 KG8.8 KG10.5 KG
box size115*115*165mm115*115*200mm115*115*220mm
Carton size365*365*355mm480*245*425mm480*365*245mm


Description

LED Track Light MINI
