DOB-EX-R Ceiling Panel Light
The LED panel light DOB-EX series: compare with traditional sidelit panel light, DOB panel light adopt the blacklit design makes the diffuser plate is not yellowing. The high CRI is greater than 80 makes everything close to real. It is very easy to assemble by the simple structure which the Led chip and driver integrated design. Moreover，there are round and square frames for optional.
Features:
LED chip and driver integrated design
120° large beam angle
CRI≥80, Make everything close to real
Non-isolated flicker free driver on board fitted, PF>0.5
Ultra-thin lamp body, suitable for a variety of ceiling, easy to install
Led Panel Light dimmable led panel daylight led panel led drop ceiling light 12v led panel
Download
Specification
| Model | DOB-EX-R-S | DOB-EX-S-S |
| Shape | Round | Square |
| Power | 6W / 12W / 18W / 24W | 6W / 12W / 18W / 24W |
| Dimension(mm) | Ø123x35mm-Ø289x38mm | |
| Installation | Surface mounted | |
| CCT(K) | 3000K / 4000K / 6500K | |
| PF | >0.5 | |
| Light Source | SMD | |
| Input Voltage | AC220-240V 50/60Hz | |
| Finishing Color | White | |
| Material | Aluminum | |
| IP Rating | IP20 | |
| CRI | Ra≥80 | |
| Beam Angle | 120° | |
Description
LED Panel Light Manufacturer
OBALS Lighting factory is a professional LED panel light manufacturer and LED panel light supplier, we focusing in high quality Commercial Lighting, Residential Lighting production and LED panel light OEM/ODM service. Professional fixtures are downlight supplier, LED Track light, Pendant Light, Linear Lighting.
Application Scenarios

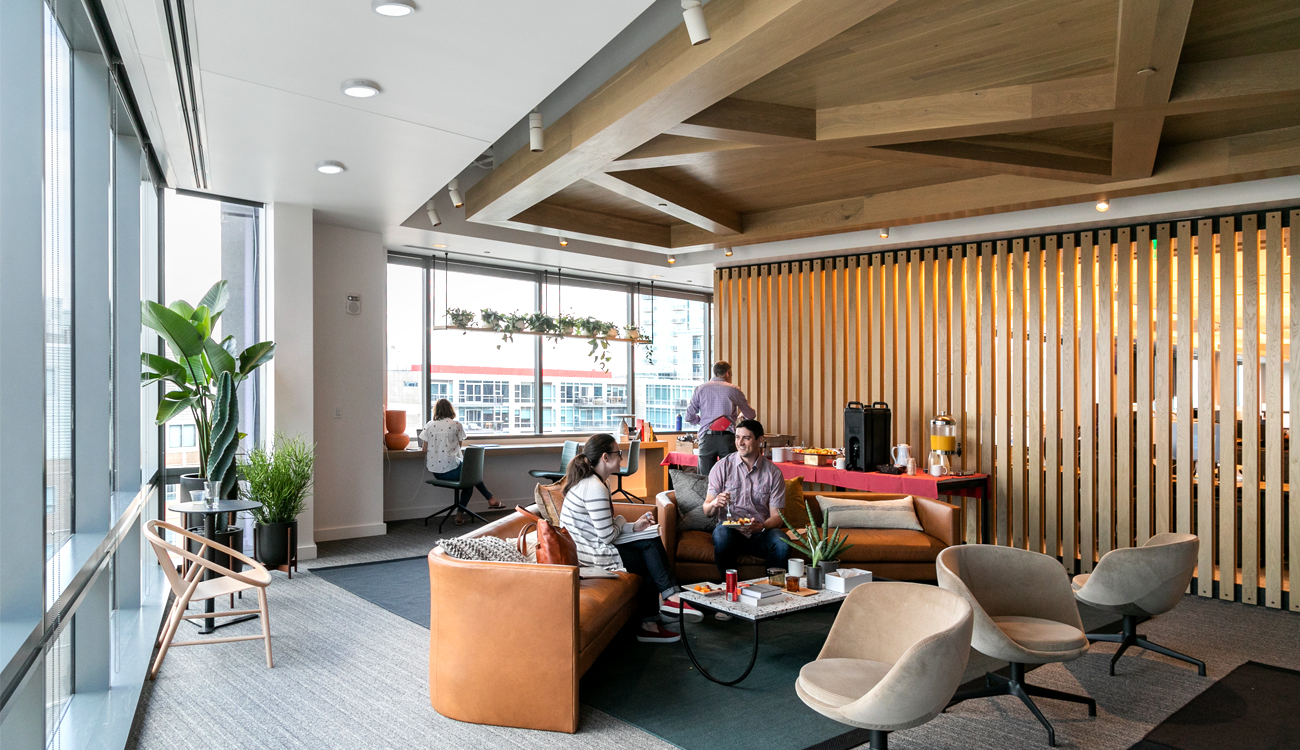

Widely used in hotels, restaurants, shops, offices, supermarkets, living rooms, kitchens and residental lighting etc.
